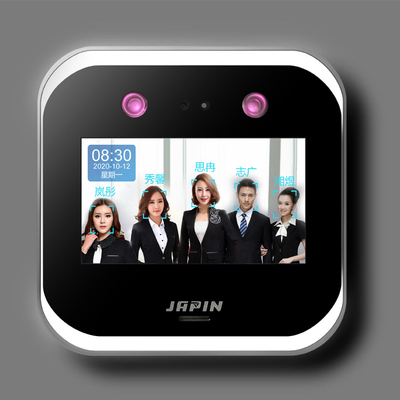

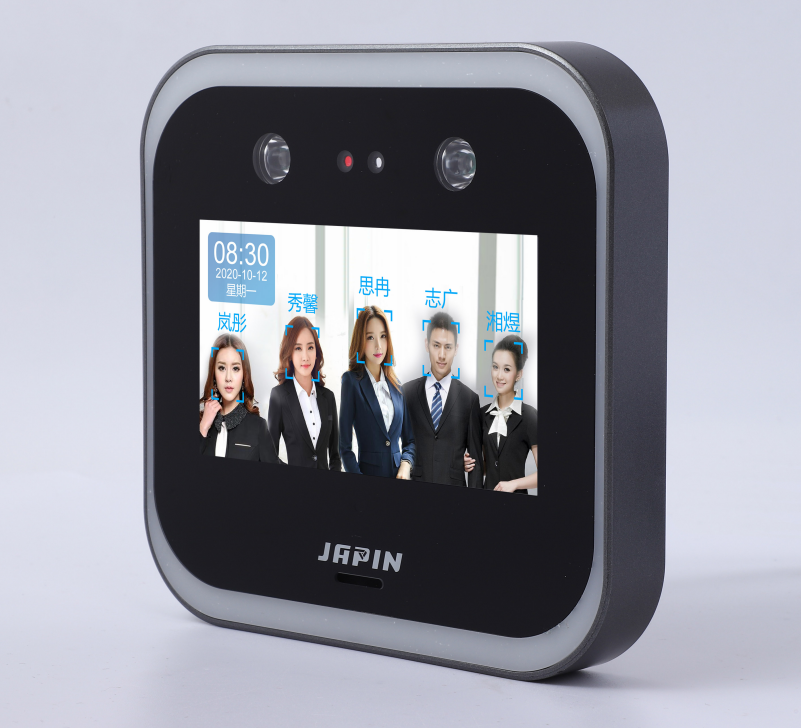

DS2-5-inch dynamic face access control integrated machine

Product introduction of 5-inch dynamic face access control all-in-one machine

Product overview

This product is an AI dynamic face recognition access control and attendance all-in-one machine, equipped with AI neural network acceleration chip NPU 0.6tops computing power, and adopts Linux3 10 system.

The dynamic face detection and tracking based on video stream adopts the face recognition algorithm technology of multi task cascade convolution neural network, supports the simultaneous recognition of 5 people, and integrates the functions of image acquisition, face detection, face tracking and face ratio equivalence. It not only has high recognition accuracy, but also has fast recognition speed.

It is applicable to face recognition access control, face recognition access gate and face recognition attendance in office buildings, parks, campuses, communities, community buildings and other places.

Product highlights

support offline face recognition, multi person / unit price recognition, one key switching, and multi person recognition of up to 5 people;

powerful access control function, rich and complete access control input and output interfaces;

The attendance function supports both software free self-service attendance statistics and background management software attendance report statistics;

2 million infrared + 2 million color imported WDR wide dynamic binocular camera, night infrared and RGB double fill light. Ultra wide dynamic range, clear imaging in strong light, backlight and dark light, and the recognition accuracy is up to 99.7%;

support living body detection, dynamic binocular anti-counterfeiting, and eliminate the deception of various photos and videos on various carriers; In vivo detection and face recognition distance is 0.3m ~ 1.5m;

dual mode report output, support u disk to export attendance reports, and support background software to count attendance reports;

Real time photo capture, which supports the on-site saving of portrait photos when face recognition is successful;

smart name broadcast, and broadcast voice according to the person's name after successful recognition;

adopt dynamic face detection and tracking based on video stream, and 1: n recognition algorithm. Accurate face recognition as fast as 0.3 seconds;

the second-generation ID card can be customized and read for person card comparison;

support local face registration, U-disk import photos to register faces, import photos to register faces in background software, and USB camera to take photos to register faces.

Detailed specification parameters

model Function item	DS25-inch dynamic face access control integrated machine
Screen information	screen	5.0-inch horizontal screen, HD 1280 * 720, capacitive touch screen
	key	Touch virtual keys
Basic configuration	operating system	LINUX 3.10
	CPU,NPU	Dual-core Cortex-A7 AI neural network acceleration chip 1.0GHz, NPU 0.6TOPs computing power
	RAM	256MB DDR3
	ROM	eMMC Flash 4GB
	The binocular camera	The 200W color imported WDR wide dynamic + 200W infrared live camera
	Clock in to record capacity	200000
Face registration	Registration method	Native operation: face registration, photo U disk import software operation: photo import registration, camera photo registration
Identify performance	Verify the alignment	Dynamic face recognition, Password (Expsible ID or IC)
	Face capacity	3,000 faces, 3,000 passwords (3,000 cards)
	accuracy rate	99.70%
	Identify the speed	Up to 0.3 seconds, support single-person / multi-person recognition switch
	Identify distance	Turn on the live body detection from 0.3 to 1.5 meters
	bio-assay	Dynamic double camera anti-counterfeiting, put an end to all kinds of black and white color photos, videos in various carriers of deception
	Identify the principle	The face algorithm technology based on the multi-task cascade convolutional neural network of video flow, for dynamic face detection, tracking and recognition
	Wide Dynamic	Ultra-wide dynamic range, strong light, reverse light, dark light imaging is clear, accurate identification

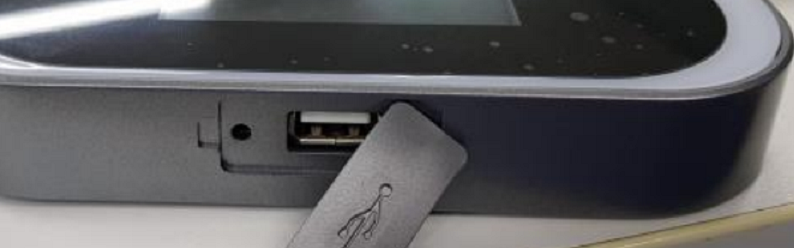

joggle	U handicap	USB2.0 x 1, U disk import and export data
	Power port	Back DC12V terminal terminal x 1
	Speaker interface	Support for extensions
	communication network	Standard standard: TCP / IP wired and WIFI wireless communication; support C / S LAN communication and B / S WAN cloud communication
Attendance function	Free software attendance	U disk Export Attendance Statistics EXCEL Report
	Ships and shifts	This machine supports shift setting, U disk import shift table
	Background management software	Support the computer software to manage the data through the network connection device
Professional access control	Access control function	Alarm, forced door alarm, alarm linkage and output, a set of door signal, a set of alarm signals, time authority control, external access control reader, Weigan 26 / 34 output (reserved extension RS485)
working atmosphere	environmental suitability	Operating temperature: -15℃ ~ + 45℃ (storage temperature-40℃ ~ + 65℃), working humidity: 20%~90% (storage humidity 20%~90 ± 2%), night: LED automatic lighting (automatically controlled according to ambient light) Environmental light adaptation range: 0-50000Lux
Other parameters	Broadcast and ring the bell	Support name display, intelligent name broadcast, built-in commuting bell ring
	Automatically fill the light	Support infrared light, support white light automatically when caught under dark light
Power supply requirements	working current	Standby current: 310mA, working current: 520mA
	Supply Voltage	DC12V
way to install	way to install	Standard equipment: wall hanging, desktop standing selection: brake bracket, landing column
levels of protection	levels of protection	IP54
weight	net weight	419 g
	rough weight	1135 g
dimensions	Equipment size	154x152x22mm
	Color box size	214x214x94mm
External box specifications	External box specifications	Size: 480x438x229mm, 12Kg / box, 10 sets / box

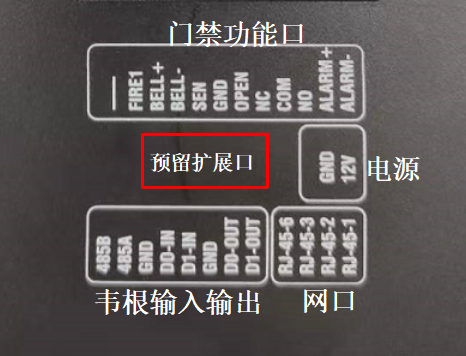

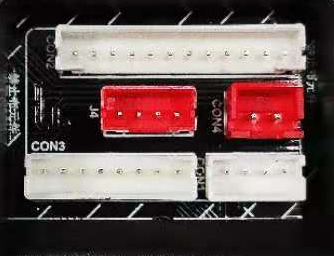

interface specification

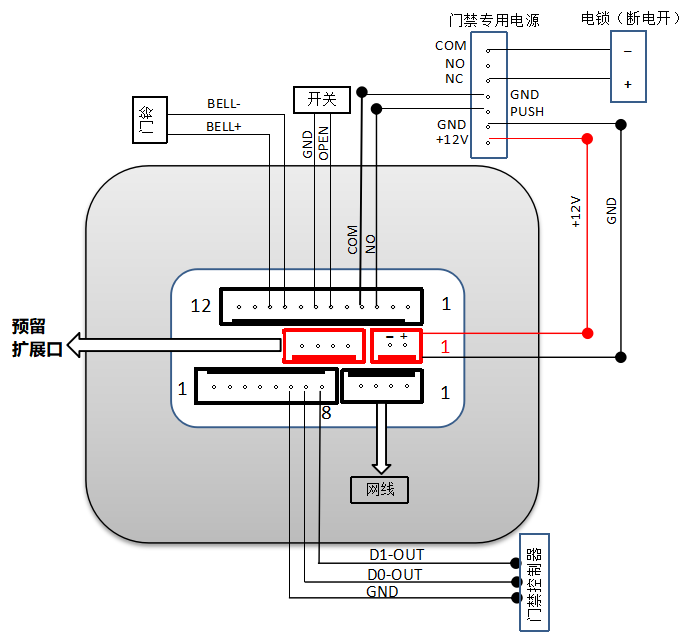

Access control wiring diagram
