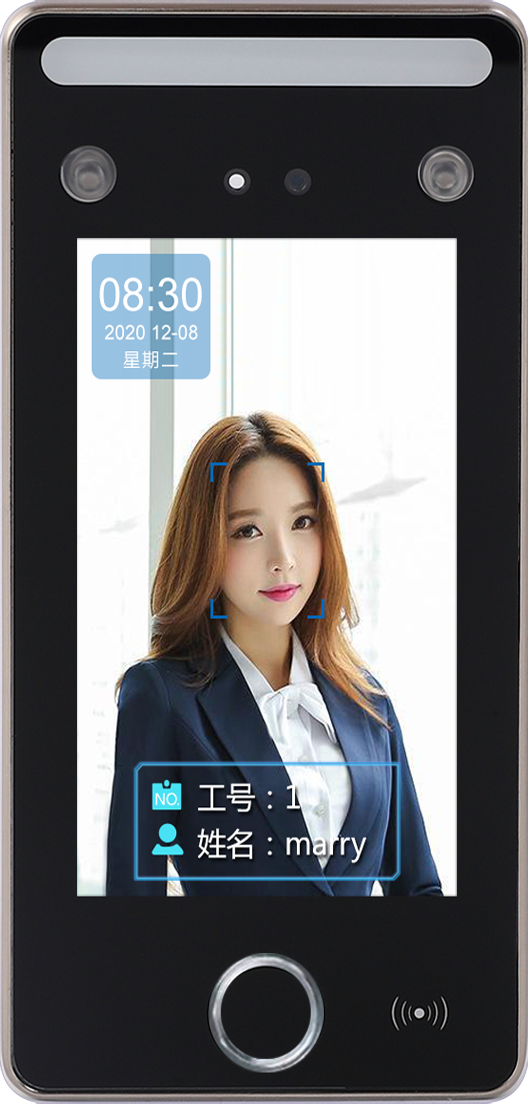

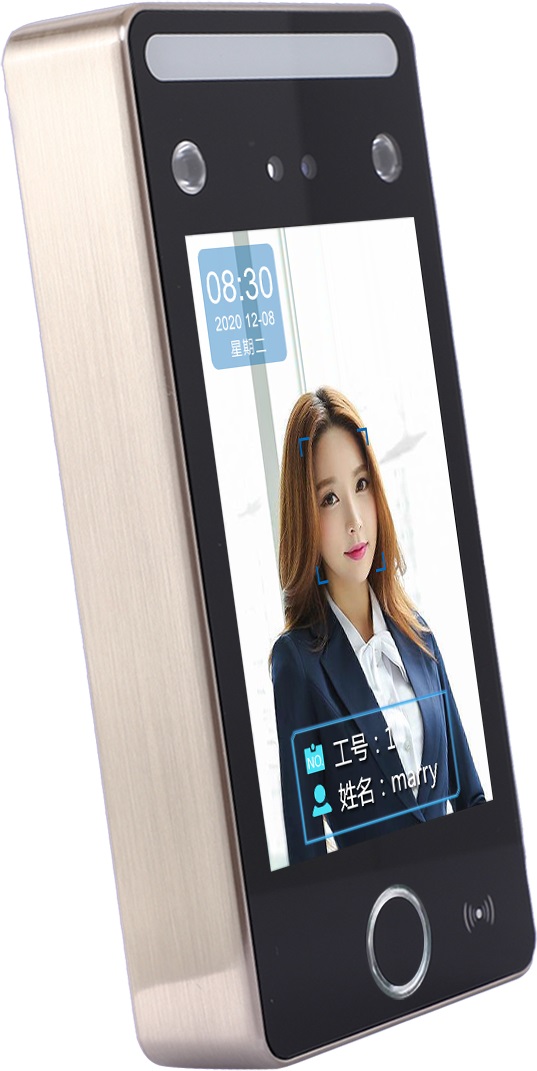

An Introduction to S820 Dynamic Face-to-face Access Integrated Machine
Product Overview
This product is a AI dynamic face recognition attendance access control machine, equipped with AI neural network acceleration chip NPU 1.2TOPs computing power, using Linux3.10 system.
Dynamic face detection and tracking based on video stream, using face recognition algorithm technology of multi-task cascade convolution neural network, supports the simultaneous recognition of 5 people, and integrates the functions of image acquisition, face detection, face tracking and face comparison. Not only the recognition accuracy is high, but also the recognition speed is fast.
It is suitable for face recognition entrance guard, face recognition channel gate, face recognition attendance in office building, campus, community, residential building and so on.
Product features
Support offline face recognition, multi-person/single-person recognition one-click switch, multi-person face brushing recognition up to 5 people；
Powerful access control function, rich access control input and output interface；
Attendance function, not only support software-free self-service attendance statistics, but also support background management software attendance report statistics；
Two million infrared 2 million color imported WDR wide dynamic binocular camera, night infrared, RGB double complementary light. Ultra wide dynamic range, strong light, inverse light, dark light imaging clear, recognition accuracy as high as 99.7%；
For in vivo detection, dynamic binocular anti-counterfeiting, put an end to all kinds of photos, video on various carriers deception; in vivo detection face recognition distance of 0.3 meters ~1.5 meters；
Dual mode report output, support U disk export attendance report, support background software statistics attendance report；
Real-time photo capture to support face recognition success in the field to save portrait photos；
Intelligent name broadcast, after successful recognition by the name of the person broadcast voice；
Dynamic face detection and tracking based on video stream ,1: N recognition algorithm. Fast to 0.3 seconds；
Extensible Custom Read Second Generation ID Card；
Support native face registration, U disk import photo registration face, support in the background software import photo registration face, USB camera photo registration face.
Detailed specification parameters
Functional items model | Dynamic Face Recognition Access Control System |
|
Screen information | screen | 5.0 inch cross screen, HD HD 720*1280, capacitive touch screen |
| key | Touch virtual keys |
Infrastructure configuration
| monitor system | LINUX 3.10 |
| CPU,NPU | Two-core Cortex-A7AI Neural Network Accelerator Chip 1.0 GHz,NPU 0.6TOPs Computational Power |
| RAM | 256MB DDR3 |
| ROM | eMMC Flash 4G |
| Binocular camera | 200W Color Imported WDR Wide Dynamic 200W Infrared Live Camera |
| Punch record capacity | 200,000 |
Face Registration | Registration | Local operation：Face Registration、Photo U Disk ImportSoftware operations：Photo Import Registration、USB camera registration |
Recognition performance | Verification comparison | Dynamic face recognition, fingerprint, password, card (ID/IC card optional) |
| Face capacity | 3000 faces ,1000 fingerprints ,3000 passwords ,3000 cards |
| Accuracy rate | 99.70% |
| Recognition speed | Up to 0.3 seconds, support single/multi-person identification switch |
| Identification distance | Activate biopsy 0.3~1.5 m |
| bio-assay | Dynamic double-shot anti-counterfeiting, put an end to all kinds of black and white color photos, video on various carriers of deception |
| Recognition principles | Multi-task cascaded convolutional neuraladed convolutional neural network based on video stream for dynamic face detection, tracking and recognition |
| WDR Wide Dynamic | Ultra wide dynamic range，The imaging of strong light, reverse light and dark light is clear and accurate |
Joggle | USB joggle | USB2.0 x 1 ，U disk import and export data |
| Power interface | x 1 DC12V terminal on the back |
| Speaker interface | Support for custom extensions |
| Communication network | Standard: TCP/IP wired, WIFI wireless; Support C/S LAN communication; Support WAN cloud communication |
Attendance function | No software attendance | U Export Attendance Statistics EXCEL Report |
| Shift and Scheduling | Class setup is supported, U disk is imported into schedule |
| Background management software | Support computer software to manage data through network connection devices |
Professional Access | Access control function | Unclosed door alarm, forced door alarm, alarm linkage and output, a set of open door signals, a set of alarm signals, external access control head, Wegan 26/34 output |
Working condition | Environmental suitability | Working temperature :-15℃~45℃(storage temperature-40℃~65℃), working humidity :20%~90%(storage humidity 20%~90%), night: LED soft light automatic light supply (automatic control according to environmental light) environmental light adaptation range :0-50,000 Lux |
Other parameters | Broadcast and ringing | Support name display, smart name broadcast |
| Automatic recharge | Support infrared light, support dark light to capture the face when the white light automatically lit up |
Power supply requirements | Working current | Standby current :310 mA, Working current: mA 580 |
| Working voltage | DC12V |
way to install | way to install | Standard: Wall mount selection: gate support, floor column |
levels of protection | levels of protection | IP64 |
Weight | net weight | 886 g |
| rough weight | 1250 g |
Dimensions | Equipment dimensions | 184x88x26mm |
| Color box size | 129x225x49mm |
Outer box specifications | Outer box specifications | Dimensions :400 x270x160mm,9Kg/ boxes ,6 units/boxes |

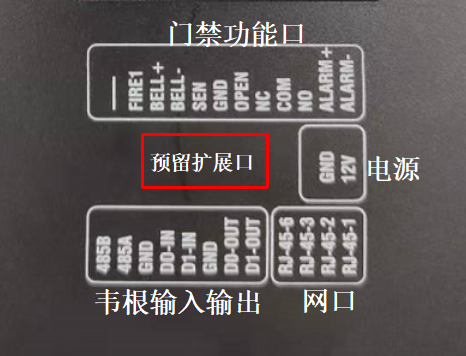

Interface specification
Access control wiring
Optional Accessories

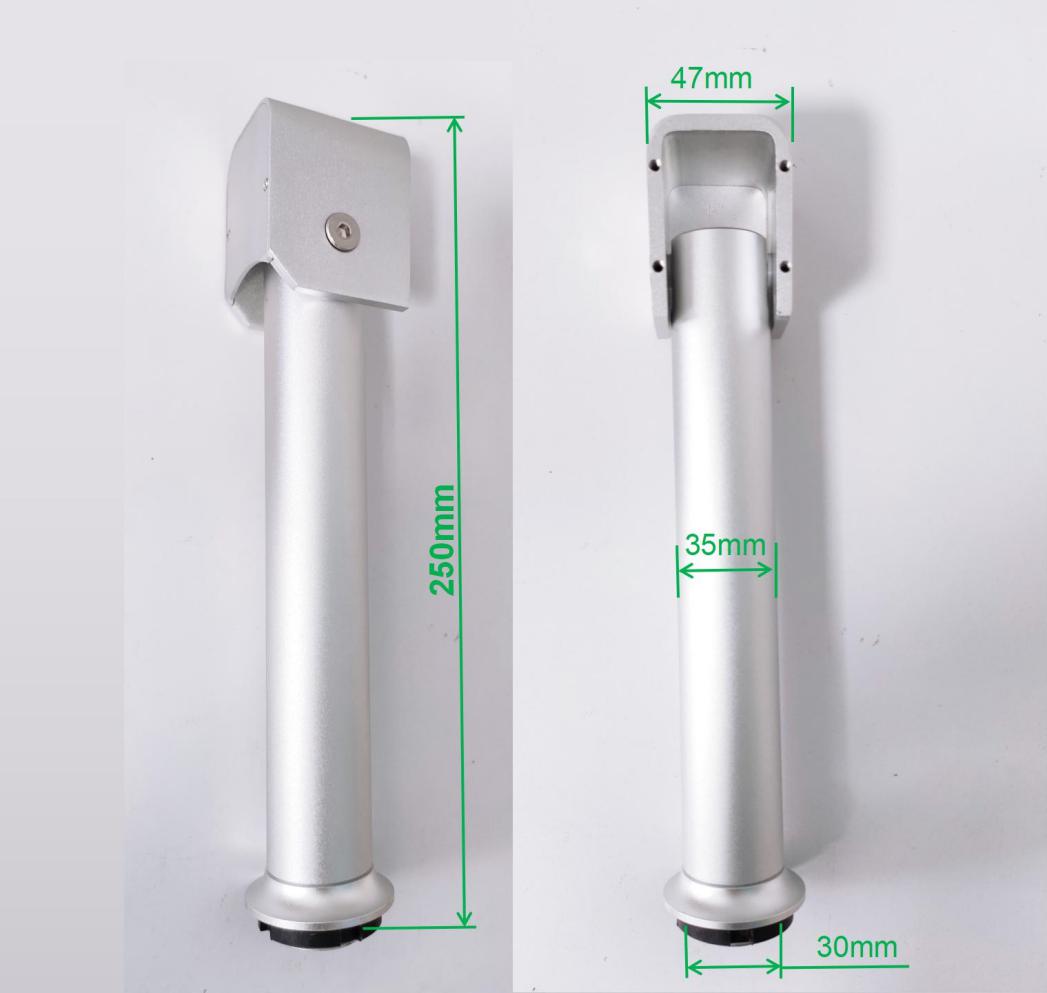

Channel Gate Support

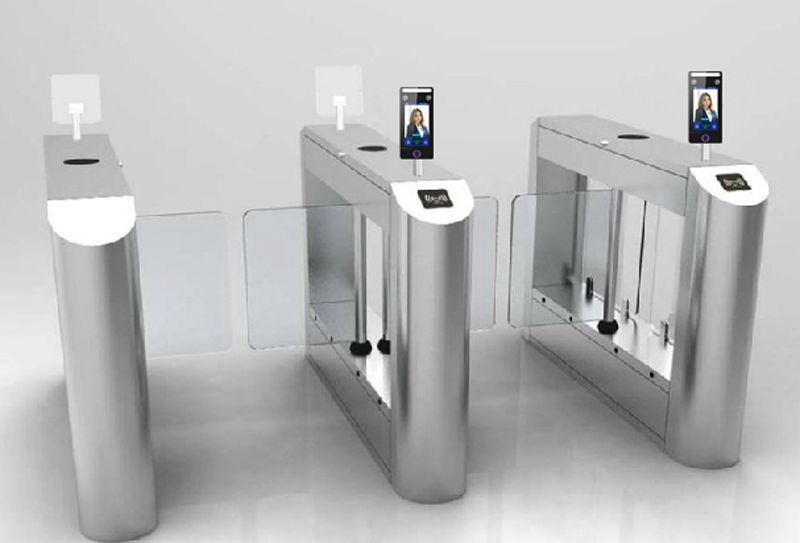

Channel Effect Map
